KCD1-106FS-2P-KG

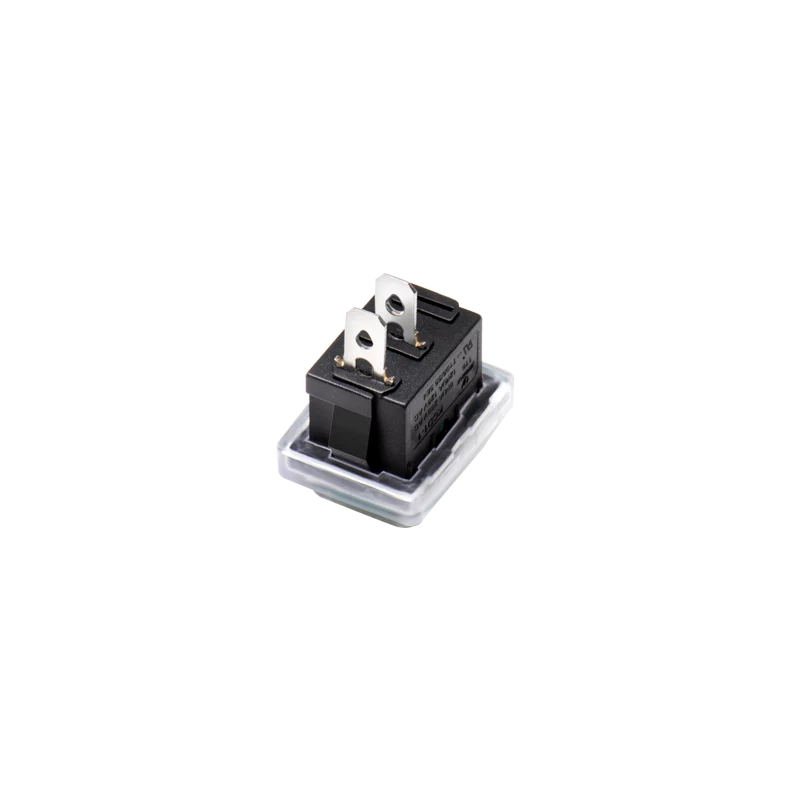

KCD1-106FS-2P-KG On Off 12v Rocker Switch
FEATURES AND BENEFITS
- Pilot light or illumination
- Imprinted markings
- IP54 splash proof rubber boot option
- Quick connect or blade terminals
TYPICAL APPLICATIONS
- Small appliances
- Computers and peripherals
- Medical instrumentation
SPECIFICATIONS
| 6A 250V AC 6(4)A 250V AC 10A 125V AC 12(6)A 125V AC 10(6) 250V AC 12GP 125V AC |
| ≧ 50000 Cycles |
| ≧ 100 MΩ |
| IP 55 |
| T 85/55 |
| ≦ 50mΩ |
Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.
WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.
CUSTOMIZING ROCKER SWITCHES
With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.
Product Features
Introducing the WEUP 12v Rocker Switch, a versatile and reliable solution for controlling the on/off functions of various home appliance products. Designed to meet the needs of B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers, this rocker switch offers a range of features and functions that make it an ideal choice for a wide range of applications.
Features and Benefits:
- Pilot Light or Illumination: The WEUP 12v Rocker Switch comes with an option for a pilot light or illumination, allowing for easy identification of the switch’s status even in low-light conditions.
- Imprinted Markings: The switch features imprinted markings that provide clear and easy-to-read indications of its functions, ensuring efficient operation and reducing the risk of user errors.
- IP54 Splash Proof Rubber Boot Option: For added durability and protection against moisture and dust, this rocker switch offers an IP54 splash-proof rubber boot option. It safeguards the switch from environmental elements, making it suitable for a variety of indoor and outdoor applications.
- Quick Connect or Blade Terminals: The switch is designed with either quick connect or blade terminals, providing flexibility in installation and allowing for easy connection to the electrical circuit.
Typical Applications:
The WEUP 12v Rocker Switch is suitable for a wide range of applications in various industries, including:
- Small Appliances: This rocker switch can be used in small appliances such as coffee makers, toasters, and blenders, providing a reliable on/off control.
- Computers and Peripherals: It is also well-suited for use in computers and peripherals, allowing users to conveniently control the power supply to their devices.
- Medical Instrumentation: With its high-quality construction and reliable performance, the rocker switch can be utilized in medical instrumentation, ensuring precise control over equipment operation.
Specifications:
- Contact Rating: The switch has a contact rating of 6A 250V AC 6(4)A 250V AC and 10A 125V AC 12(6)A 125V AC, allowing for efficient power transmission.
- Electrical Life: With a life expectancy of over 50,000 cycles, this rocker switch ensures long-lasting performance and durability.
- Insulation Resistance: The switch offers insulation resistance of over 100 MΩ, providing excellent electrical insulation properties.
- Degree of Protection: With an IP55 degree of protection, it offers reliable protection against dust and water splashes, making it suitable for various environments.
- Operating Temperature: The switch has an operating temperature range of T 85/55, allowing for stable performance even in challenging conditions.
- Contact Resistance: With a contact resistance of less than 50mΩ, the rocker switch ensures efficient electrical contact and minimizes energy loss.
Customizing Rocker Switches:
WEUP understands the importance of meeting specific customer requirements. With its own D&R development capabilities, WEUP offers customization options for rocker switches. This allows them to create new models according to customers’ requests, ensuring that the switch meets their exact specifications. Some customization options include:
- Shapes and Sizes: WEUP can customize the shape and size of the rocker switch to fit specific applications or design requirements.
- Construction: The company offers options for different construction materials to suit environmental conditions or industry standards.
- Frames: Customizable frames provide added protection and aesthetic appeal for the rocker switch.
- Recessed Switch Guards: To prevent accidental actuation, recessed switch guards can be added to the design.
- Splash-proof Rubber Boots: For additional protection against moisture and dust, splash-proof rubber boots are available as an option.
- Sub-miniature Sizes: WEUP offers sub-miniature sizes for space-saving applications where a small footprint is required.
In addition to customization options, WEUP also provides support for custom wire harnesses and actuator markings. This ensures that the rocker switch seamlessly integrates into customers’ designs while meeting their specific requirements and needs.
By choosing the WEUP 12v Rocker Switch, B2B buyers can benefit from its reliable performance, customizable features, and exceptional support from an experienced manufacturer. Whether you are an importer, distributor, manufacturer, brand, wholesaler, or retailer, this rocker switch is an excellent choice for your electrical control needs. Trust WEUP as your partner in providing high-quality rocker switches that meet your unique specifications.
Why Choose WEUP?
High Quality
Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.
Affordability
We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.
Reliable Supplier
As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.
Excellent Customer Service
At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.
Certificates
Technical Data
- Model
- Characteristics
- Drawings
Characteristics
| Permissible operating frequency | Mechanical | 20 operations/min max. |
| Electrical | 7 operations/min max. | |
| Insulation resistance | 100 MΩ min. (at 500 VDC with insulation tester) | |
| Contact resistance (initial value) | 100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method) | |
| Dielectric strength | Between terminals of the same polarity | 2,000 VAC, 50/60 Hz, for 1 min |
| Between terminals of the different polarity | 2,000 VAC, 50/60 Hz, for 1 min | |
| Between charged metal parts and the ground terminal | 4,000 VAC, 50/60 Hz, for 1 min | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Malfunction | 300 m/s2 |
| Destruction | 500 m/s2 | |
| Durability | Mechanical | 50,000 operations min. |
| Electrical | 10,000 operations min. | |
| Inrush current | 100 A max. (8.3 ms max.) | |
| Degree of protection | IEC IP40 | |
| Ambient operating temperature | –20 to +55C (with no icing or condensation) | |
| Ambient operating humidity | 45 to 85%RH | |
