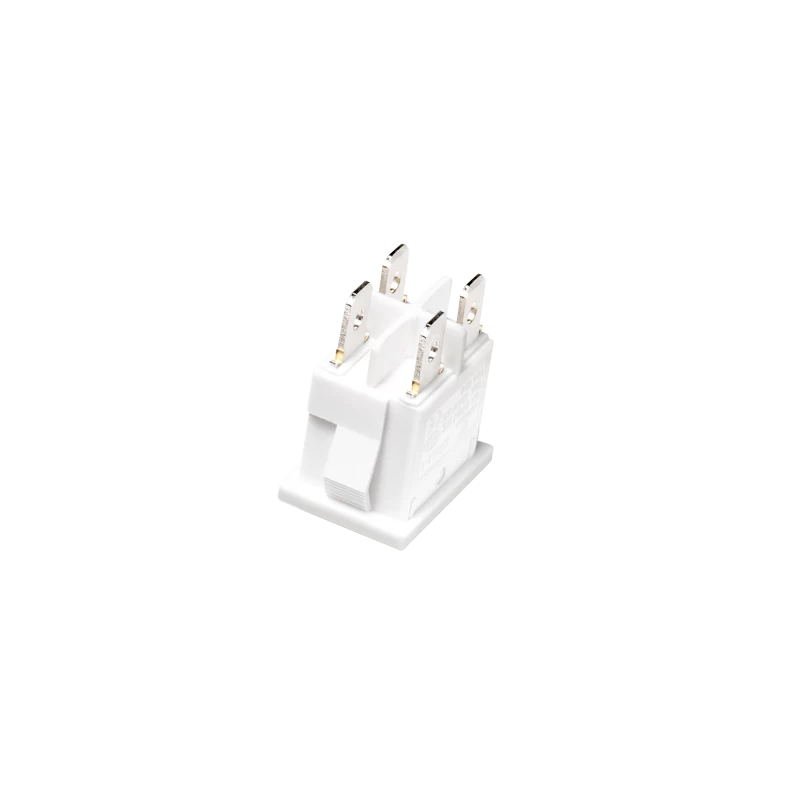

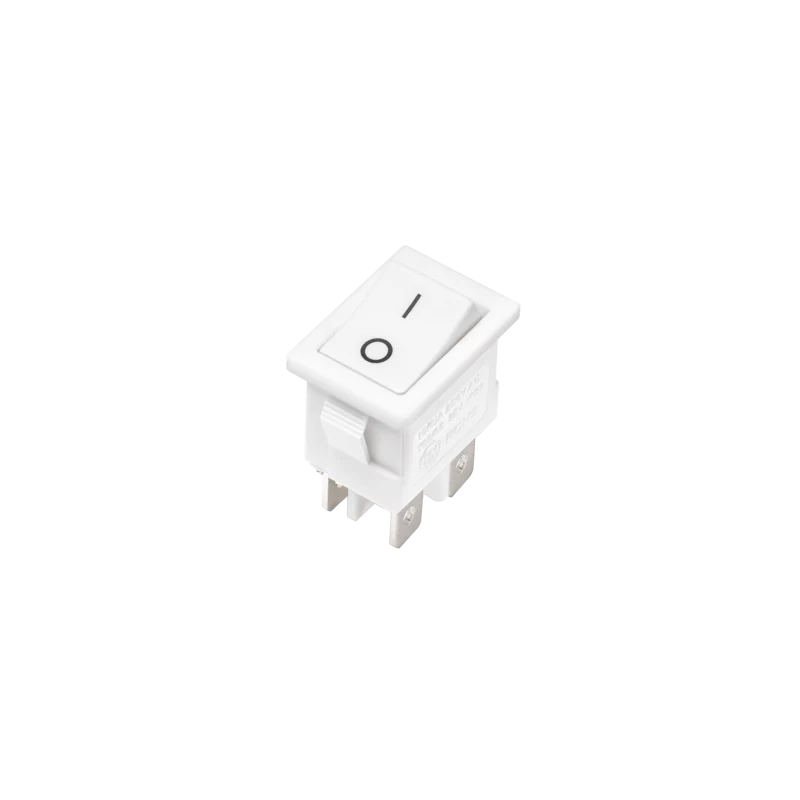

KCD1-104G-4P-WW On Off 12v Rocker Switch
KCD1-104G-4P-WW
FEATURES AND BENEFITS
- Pilot light or illumination
- Imprinted markings
- IP54 splash proof rubber boot option
- Quick connect or blade terminals
TYPICAL APPLICATIONS
- Small appliances
- Computers and peripherals
- Medical instrumentation
SPECIFICATIONS
| 6A 250V AC 10A 125V AC 10(6) 250V AC |
| ≧ 50000 Cycles |
| ≧ 100 MΩ |
| IP 55 |
| T 85/55 |
| ≦ 50mΩ |
Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.
WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.
CUSTOMIZING ROCKER SWITCHES
With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.
Product Features
Introducing the WEUP 12v Rocker Switch
Are you a B2B buyer in search of a reliable and efficient 12v Rocker Switch? Look no further than the WEUP 12v Rocker Switch. With its impressive range of features and functions, this rocker switch is the ideal choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s explore why the WEUP 12v Rocker Switch stands out from the competition.
Effective On/Off Functionality The most important function of any rocker switch is its ability to control the on/off functions of various appliances. The WEUP 12v Rocker Switch excels in this area, providing a reliable and efficient solution for powering small appliances, computers, peripherals, and medical instrumentation. Whether you are looking to switch on or off, this rocker switch delivers precise and consistent performance.
Versatile Configuration Options WEUP understands that different applications require different configurations. That’s why the 12v Rocker Switch is available in various options to suit your specific needs. You can choose from two-position On/Off, three-position, momentary, maintained, and more. This wide selection ensures that you can find the perfect configuration for your particular requirements.
Enhanced Visibility with Pilot Light or Illumination The WEUP 12v Rocker Switch offers the added convenience of a pilot light or illumination feature. This allows for easy visibility and operation, even in low-light conditions. You can quickly identify whether the switch is on or off, ensuring smooth and efficient functionality.
Durable and Reliable Construction When it comes to electrical products, durability is crucial. The WEUP 12v Rocker Switch is designed to withstand the test of time with its high-quality construction. With an electrical life of over 50,000 cycles, you can rely on this rocker switch to deliver consistent performance throughout its lifespan. Additionally, with a contact rating of 6A 250V AC and 10A 125V AC, you can rest assured that this switch can handle a variety of electrical requirements.
Easy Installation and Connectivity The WEUP 12v Rocker Switch offers quick connect or blade terminals, making installation a breeze. Whether you are a manufacturer looking to incorporate this switch into your products or a retailer offering it to customers, the ease of installation ensures a seamless experience. The switch’s compatibility with a wide range of applications further enhances its versatility.
Customization Options WEUP understands that every customer has unique requirements. That’s why they offer customization options for their rocker switches. With their own D&R development capabilities, WEUP can create new models based on customers’ requests. Whether it’s custom wire harnesses, actuator markings, or specific shapes and sizes, WEUP is committed to meeting your individual needs.
Excellent Support and Service WEUP takes pride in providing exceptional support and service to their customers. As one of the leading China manufacturers and suppliers of rocker switches, they have built a reputation for their commitment to quality and customer satisfaction. Whether you have questions about product specifications or need assistance with customization options, WEUP’s knowledgeable team is ready to assist you.
In conclusion, the WEUP 12v Rocker Switch is the ideal choice for B2B buyers in search of a reliable and efficient solution. Its impressive range of features, versatile configuration options, enhanced visibility, durability, easy installation, customization options, and excellent support make it a standout product in the market. Whether you are an importer, distributor, manufacturer, brand, wholesaler, or retailer, the WEUP 12v Rocker Switch is sure to meet your needs. Don’t miss out on this exceptional product from one of China’s leading manufacturers. Contact WEUP today to discover how their 12v Rocker Switch can elevate your business.
Why Choose WEUP?
High Quality
Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.
Affordability
We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.
Reliable Supplier
As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.
Excellent Customer Service
At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.
Certificates
Technical Data
- Model
- Characteristics
- Drawings
- Applications
Characteristics
| Permissible operating frequency | Mechanical | 20 operations/min max. |
| Electrical | 7 operations/min max. | |
| Insulation resistance | 100 MΩ min. (at 500 VDC with insulation tester) | |
| Contact resistance (initial value) | 100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method) | |
| Dielectric strength | Between terminals of the same polarity | 2,000 VAC, 50/60 Hz, for 1 min |
| Between terminals of the different polarity | 2,000 VAC, 50/60 Hz, for 1 min | |
| Between charged metal parts and the ground terminal | 4,000 VAC, 50/60 Hz, for 1 min | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Malfunction | 300 m/s2 |
| Destruction | 500 m/s2 | |
| Durability | Mechanical | 50,000 operations min. |
| Electrical | 10,000 operations min. | |
| Inrush current | 100 A max. (8.3 ms max.) | |
| Degree of protection | IEC IP40 | |
| Ambient operating temperature | –20 to +55C (with no icing or condensation) | |
| Ambient operating humidity | 45 to 85%RH | |
Applications
Rocker Switch Applications
Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment
Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.
Air purifiers, dehumidifiers, etc.
Monitors, copiers, printers, etc.
| Monitors | Copiers | Printers |
 |  |  |
| Power Supplies | Measuring Devices | Power Outlet Strips |
 |  |  |
Download Latest Catalog
Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.
Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.
Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.
For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.
All the products will be 100% checked before the shipment.
